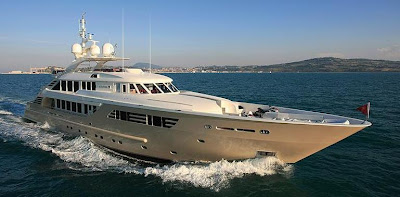

Based on the design of the 470, is the new International Shipyards Ancona 480. The new ISA Yachts 480 adds half a metre of length to the 470, but keeps the same beam, and similar exterior looks, designed by Walter Franchini. The architect for the 480 does not change much in substance and keeps the aggressive looking descending stern, with an elegant side profile and high rise bow. Built of a steel hull, with an aluminium super structure to most strict class rules, the ISA 480 offers a standard interior plan for the three decks plus flybridge super yacht with four double guest cabins on the lower deck, and an owners suite on the main deck. Crew accommodation is for ten members, with the captains cabin on the third deck next to the pilot house. Power is from twin MTU 2479hp engines which give top speeds of 16.7 knots minus .3 knots to the 470, which has also less power. Range is for 2250 nautical miles at 14 knots. Technical Data:
LOA - 48 m (157.4ft)
Length Waterline - 41.20 m
Beam - 8.90 m
Draft - 2.55 m full load
Displacement - 464 t half load, 500 t full load
Fuel Capacity - 69000 l
Water Capacity - 15000 l
Accommodation - five double owners guest cabins, 10 crew berths
Engines - 2 x MTU 12V4000M71 2479hp
Speed - 16.7 knots max, 15.5 knots cruise
Range - 2250 nm at 14 knots
Construction - steel hull, aluminum super structure
Design - Walter Franchini, ISA Yachts
Certification - Lloyd's Malta Cross 100A1 SSC Yacht Mono G6 UMS, MCA Code of Practice LY2 unrestricted
